Product Introduction
A modular ESS architecture with independent string operation, integrating PCS, BMS, and EMS for efficient energy conversion, precise control, and rapid fault isolation. Ideal for utility, C&I, and microgrid applications.
Key Advantages
High Efficiency & Reliability
- Battery availability +3%–7.5%; system RTE +~2%.
- String PCS delivers 4%–5% higher discharge energy.
- Independent operation per module improves overall stability.
Precise Control, Better Yield
- Unified SOC calibration reduces energy deviation.
- Intelligent management cuts O&M costs and energy loss.
- SOC 0–100% accurate control ensures stable performance.
Easy Deployment & O&M
- Fault isolation ensures uninterrupted operation (loss ↓92%).
- Factory-preinstalled modules improve installtion quality.
- Integrated delivery simplifies on-site wiring.
Optimized Investment
- Initial capacity requirement 15%, lowering CAPEX
- Battery cycle life +5%, improving long-term returns.
- Supports flexible expansion for future needs.
Recommended Product
|

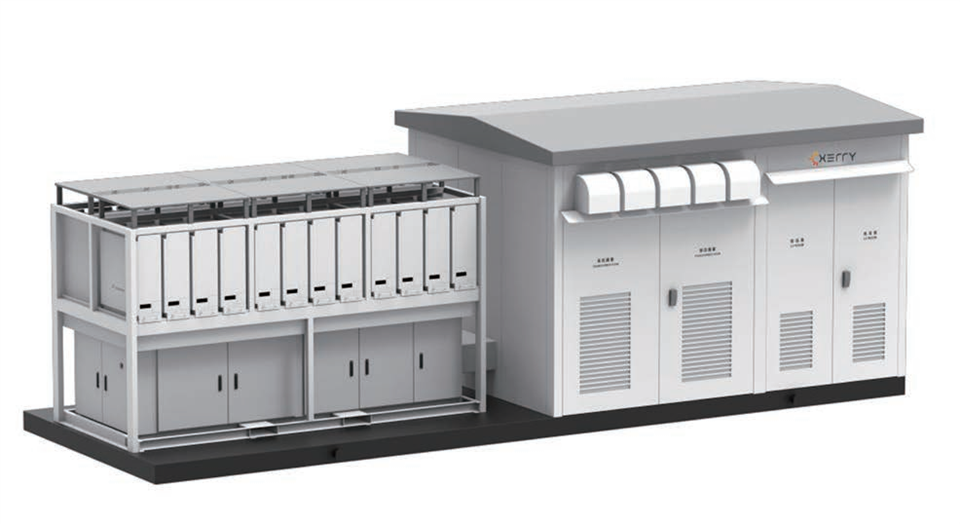

Integrated PCS + Step-Up Transformer Substation
|
||
|---|---|---|
| Input (DC) | Max. DC Bus Voltage | 1500V |
| Max DC Current | 240 A*24 | |
| DC Voltage Range | 1000~1500V | |
| No. of Battery Strings | 24 | |
| Output (AC) | Rated Power | 5160 kVA |
| Max. Output Power | 5676 KVA | |
| Rated Grid Voltage | 6/ 10/35 kV | |
| Rated Grid Frequency | 50 Hz | |
| Efficiency | Power Conversion Efficiency | 99% |
| Transformer Efficiency | >99%(@75°C, COSΦ=1, 100%Load) | |
| Transformer Parameters | Transformer Type | Dry-type |
| Transformer Rated Power | 5160 KVA | |
| MV/LV | (6~35)/0.69 kV | |
| Winding Connection | DyII | |
| System Parameters | Dimensions (L×W×H) | 880030003020(tentative) |
| Cable Entry | AC/DC bottom entry | |
| Operating Temperature | -40°C~+60°C (>45°C derating) | |
| Operating Altitude | 5000m (>4000m derating) | |
| Weight | <25t | |
| Protection Rating | IP54 (PCS IP66) | |
