Description
Technical Parameters
TECHNICAL SPECIFICATIONS

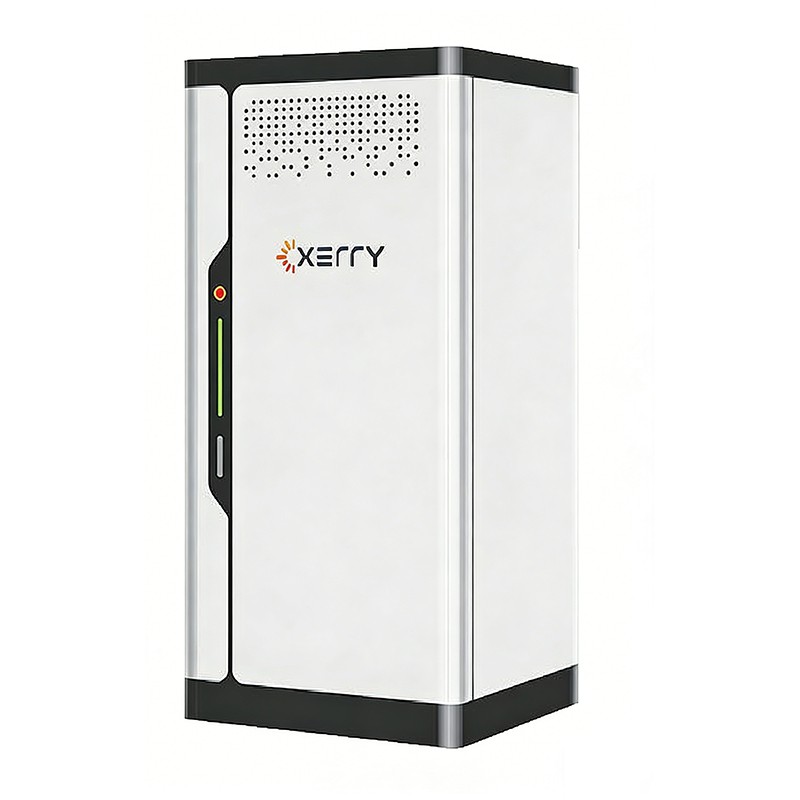

| Product Model | Cherry Van |
|---|---|
| Battery Data | |
| Battery Technology | LFP |
| Rated Capacity (kWh) | 23296 |
| Rated Voltage (V) | 832 |
| Charge/Discharge Rate | 0.5P |
| System Battery Configuration | 1P52S5P |
| PCS Data | |
| Operating Voltage Range (V) | 340~440 |
| Maximum Output Current (A) | 198 |
| Rated AC Power (kW) | 125 |
| Maximum AC Power (kW): | 137 |
| Power Factor | > 0.99(rated power) |
| Rated AC Line Voltage (V) | 400 |
| Rated AC Line Frequency (Hz) | 50/60 |
| AC Efficiency (Grid-Connected) | |
| AC Output Power (kVA) | 125 |
| Maximum AC Output Power (kVA) | 137 |
| Nominal AC Voltage (V) | 400(-15%~+10%) |
| Nominal Grid Frequency / Grid Frequency Range (Hz) | 50/60 (-2.5~2.5) |
| Maximum AC Output Current (A) | 198 |
| Total Current Harmonic Distortion (THD) | <3% (rated power) |
| Rated Power Factor | > 0.99 |
| Adjustable Power Factor Range | 1 leading - 1 lagging |
| AC Output Topology | 3W+PE/3W+N+PE |
| AC Efficiency (Off-Grid) | |
| Overload Capacity | 110% |
| AC Output Power (kVA) | 125 |
| Maximum AC Output Power (kVA) | 137 |
| Rated AC Output Voltage (V) | 400 |
| AC Voltage Total Harmonic Distortion (THD) | <3% (rated power) |
| Nominal Grid Frequency / Grid Frequency Range (Hz) | 50/60 |
| Maximum AC Output Current (A) | 198 |
| AC Output Topology | 3W+N+PE |
| General Data | |
| Maximum System Efficiency | 99% |
| Dimensions (WDH) (mm) | 1400x350x2100 |
| Weight (kg) (kg) | ≤2700 |
| Lightning Protection | Type II |
| Switching Between On/Off Grid | Manual (default) / Automatic (optional) |
| Protection | IP55 |
| Operating Temperature Range (°C) | -20 to 55°C (>45°C derating) |
| Relative Operating Humidity | 0~95%(non-condensing) |
| Operating Altitude (m) | 2000 |
| Cooling Method | Air-cooled (PCS), Liquid-cooled (battery) |
| Fire Protection | Active warning, aerosol |
| Communication Interfaces | RS485, Ethernet, CAN |
| Communication Protocols | Modbus RTU, Modbus TCP |
| Certifications | CE, IEC 61000, IEC 62619, NRS 097-2-1:2017 |
Functional Characteristics
Strong Grid Adaptability
- Supports weak grids and handles voltage fluctuations
- Balances three-phase loads for stable performance
01
High Energy Density
- High energy density for better efficiency
- Compact footprint, suitable for space-limited sites
02
High Efficiency & Reliable
- Multi-layer safety protection for reliable operation
- Plug-and-play design for fast deployment and easy O&M
- Significantly reduces installation and maintenance costs
03
Versatile for Multiple Applications
- Ideal for C&I peak shaving and load shifting
- Supports virtual power plants and energy dispatch
- scenarios
04
